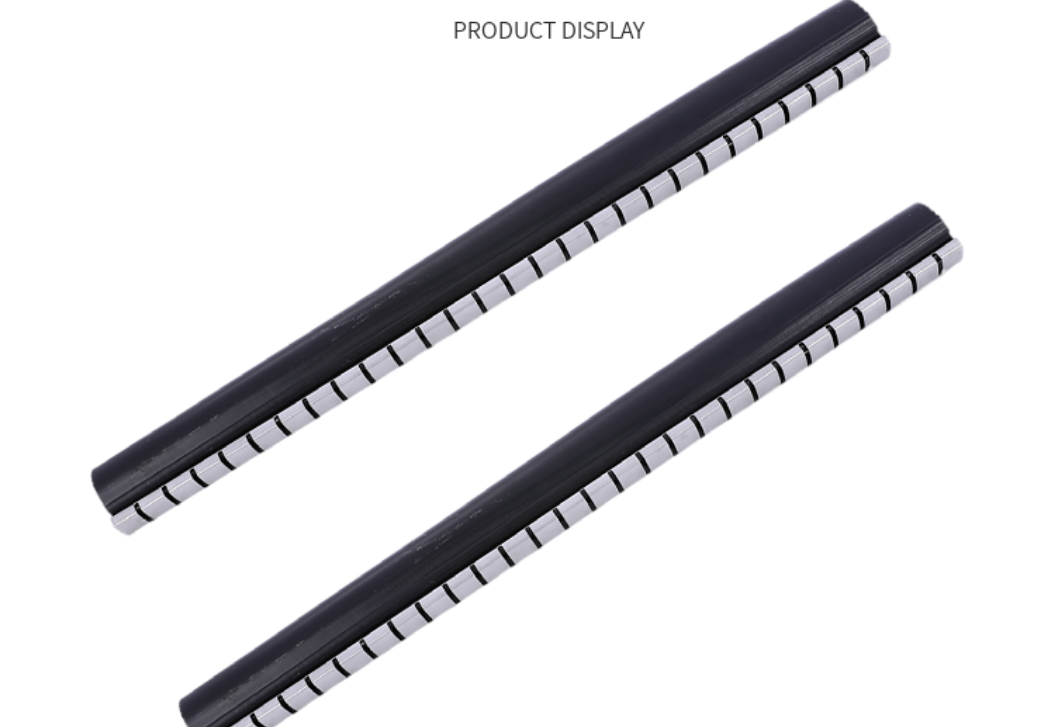

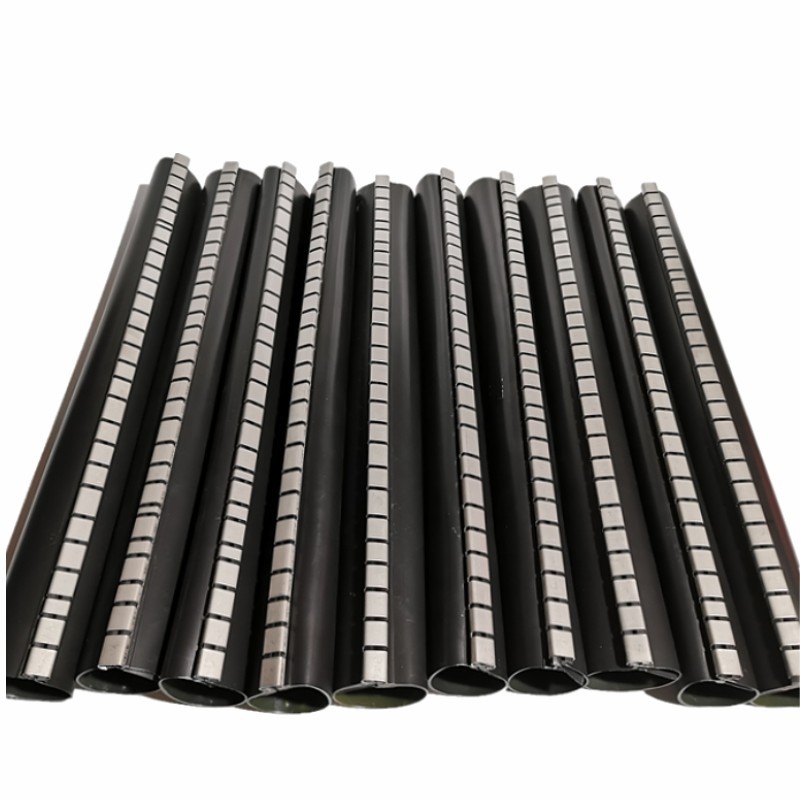

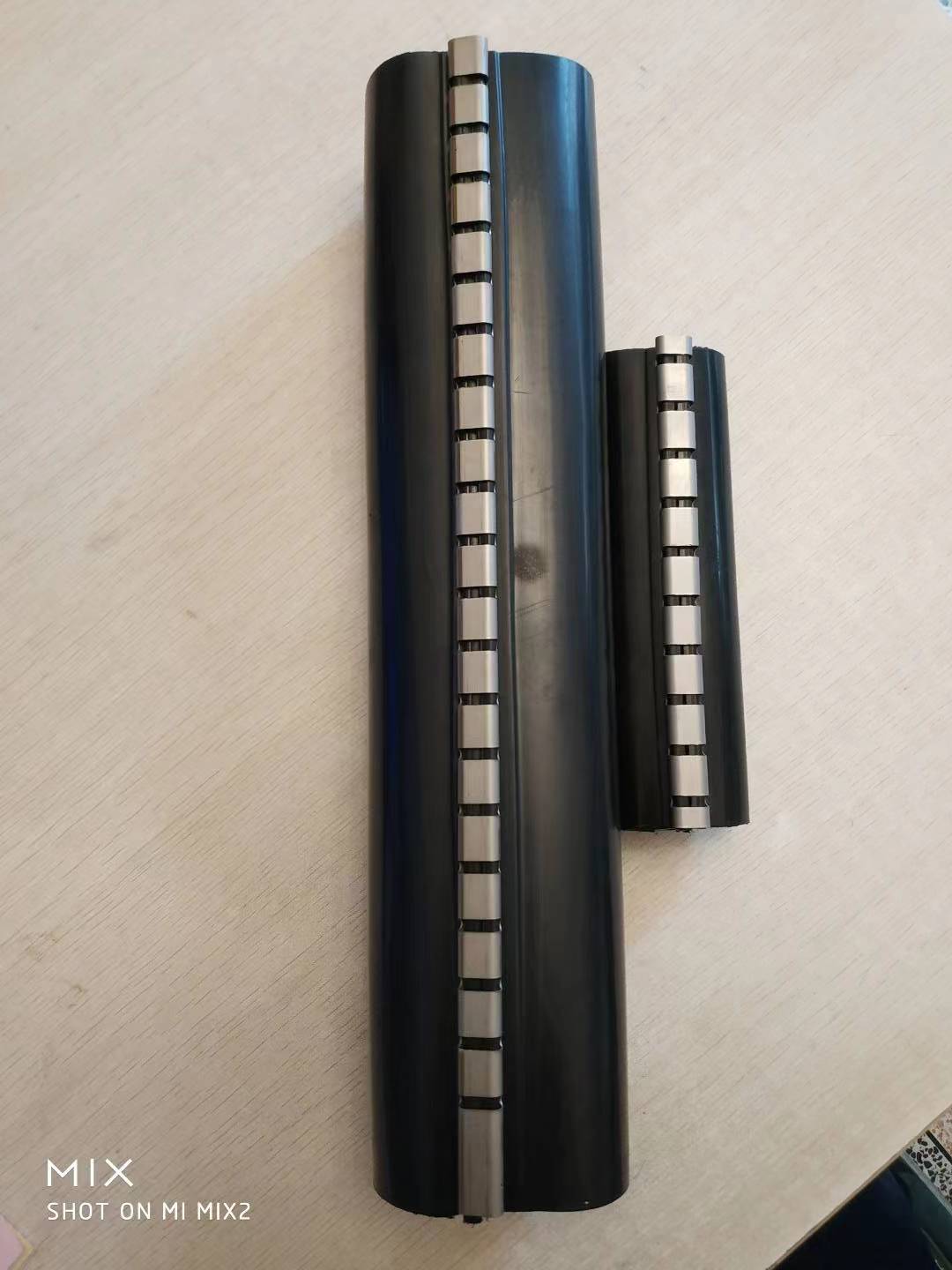

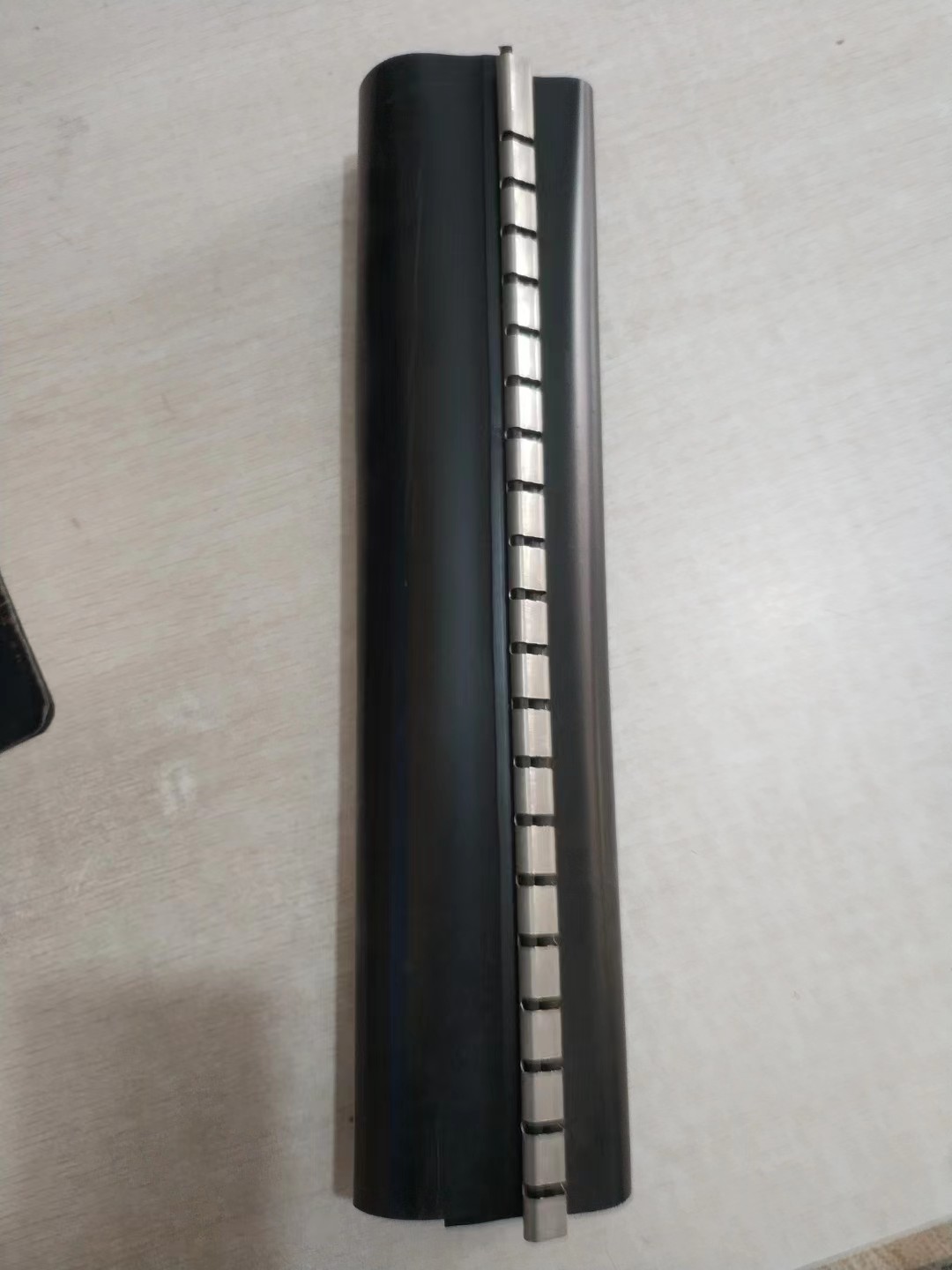

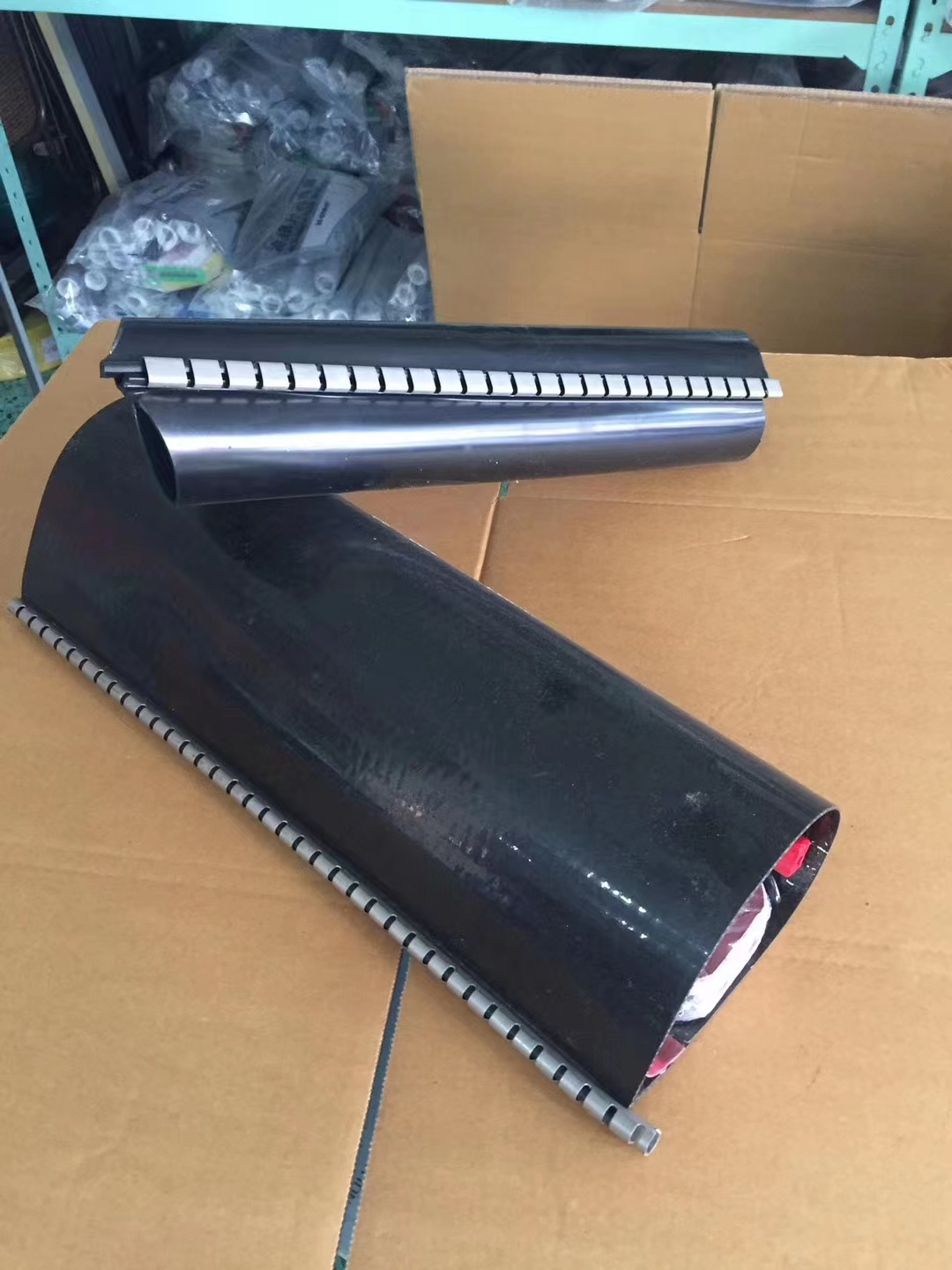

Wraparound Heat Shrinkable Cable Repair Sleeve with heat reactive paint
Wraparound Heat Shrinkable Cable Repair Sleeve | ||||
Features | ||||
Semi-rigid out layer, adhesive lined,moisture-proof | Operating temperature: -25~90ºC | |||
Emergency cable repair and sealing system | Shrink temperature: 135ºC | |||
Abrasion and corrosion resistant | Halogen free | |||
Steel channel enables permanent closure system | RoHS compliant | |||
Quickly fitted in breakage,insulating and air-tight repair | ||||
Technical Data | ||||
Property | Test method | Values | ||
Physical | Tensile strength | ASTM D2671 | ≥14 MPa | |
Breakdown elongation | ASTM D2671 | ≥ 350% | ||
Aging (150ºC /168hrs) | Tensile strength | ASTM D2671 | ≥12 MPa | |
Breakdown elongation | ASTM D2671 | ≥300% | ||
Density | ASTM D792 | 1.1~1.2 | ||
Low temperature flexibility(-25 ºC/4hrs) | ASTM D2671 | No cracking | ||
Hardness (Shore D) | ASTM D2240 | 40~50 HD | ||
Heat shock (200 ºC/4hrs) | ASTM D2671 | No cracking ,no flow | ||
Water absorption | ASTM D570 | ≤0.5% | ||
Electrical | Volume resistivity | ASTM D257 | ≥1013 Ω.cm | |
Dielectric strength | ASTM D2671 | 15 KV/mm | ||
Dielectric constant | IEC 250 | ≤ 5.0 | ||
Chemical | Fungus resistance | ASTM G21 | No growth | |
